Sinclair Oxford 200

Type 1

Type 2

Sinclair Oxford 100 (Styles 1 & 2)

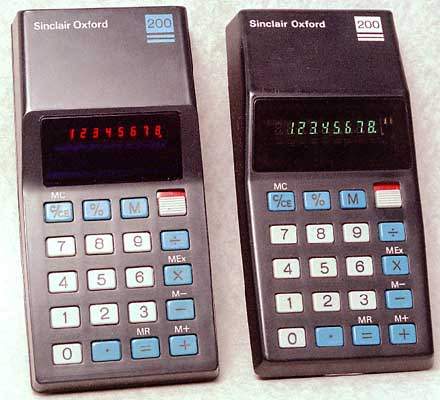

Sinclair Oxford 200 (probably early style)

Display is 8 digits, red LED.

4-function, %, memory.

9v (PP3 battery).

73 x 155 x 34 mm (2.9 x 6.1 x 1.3 ins).

Made in England.

Type 1, sharp corner casing.

Price, April 1975[1] GBP £21.55 (about US$48).

Sinclair Oxford 200 (probably late style)

Display is 8 digits, green VFD (Vacuum Fluorescent Display).

4-function, %, memory.

9v (PP3 battery).

73 x 155 x 34 mm (2.9 x 6.1 x 1.3 ins).

Made in England.

Type 2, rounded corner casing.

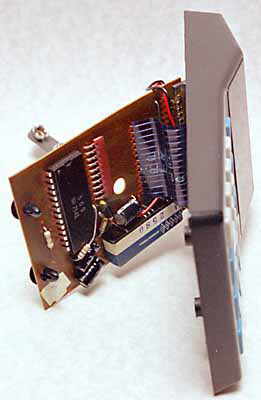

The circuit board of the type 2 Sinclair Oxford 200. The white and blue block is a voltage converter to provide the high voltage for the vacuum fluorescent display.

Inside.

Sinclair's Oxford range of calculators was launched in Spring 1975[1].

Initially, the models in this this range had a sharp cornered casing and an LED display, which has been designated Oxford case type 1 on this site.

Later calculators in the Oxford range had a more stylish, more rounded casing, coupled with a green VFD display.  This has been designated Oxford casing type 2 on this site and can be seen here and on the other Oxford pages.



Reference:

  1. "news digest", Electronics Today International, May 1975, p6.
